Connectors and cables

Connectors and cables for device connection and field cabling

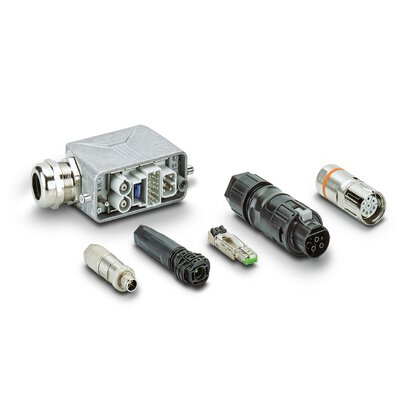

Versatile M5 to M58 circular connectors, data, and photovoltaic connectors as well as modular rectangular and heavy-duty industrial connectors: the comprehensive connector range from Phoenix Contact offers a huge variety of solutions for industrial and semi-industrial applications. Application-specific connector systems as well as cables and lines that are pre-assembled or for assembly complete the range..

Brand: Phoenix

Product Description

Advantages:

Numerous possible applications thanks to a large number of designs and modular systems
Maximum reliability due to the outstanding level of quality and years of expertise
Innovative and time-saving connection solutions for devices with all the usual degrees of protection associated with industrial use
High degree of flexibility thanks to customer-specific adaptations
Expert design-in support from product specialists

A wide range of solutions for the following industries

Connectors and cables are used in almost all industries and markets, and tailor-made solutions are available. The industries in which they are used include, for example:

Industrial automation
Building automation
Process automation
New energies and energy supply
Information and telecommunications technology

Ideal for a wide range of applications

Whatever the requirements of your applications are, the Phoenix Contact range of connectors has the ideal connection technology. Benefit from reliable and durable connections, for example in the following applications::

Communication devices
Measuring and monitoring devices
Controllers
Motors, drives, and converters
Energy storage
Lighting
Input/output
Power supplies and inverters

Product features at a glance

Device connectors and cable connectors
Metric threads from M5 to M58
DC and AC solutions
Connectors for copper and FO cables
Modular connector systems for signals, data, and power
Connectors for IP20 to IP69K degrees of protection
Hybrid connectors

Circular connectors

Phoenix Contact offers circular connectors in numerous sizes for industrial automation. From small to large, straight or angled, molded or designed for on-site assembly: the wide-ranging portfolio offers optimum solutions for transmitting signals, data, and power.

M12 and M23 innovative hybrid connectors
3- to 19-pos. M5, M8, M12, M23, and 7/8″ signal connectors
M8 and M12 data connectors for transmission speeds up to 10 Gbps
M12 to M58 power connectors for currents up to 150 A and voltages up to 630 V

Connectors for energy storage

Install your energy storage systems quickly, safely, and cost-effectively for applications up to 1,500 V – with battery connectors and connectors for busbar connection.

Connectors for front and rear connection to energy storage devices
Nominal voltage up to 1,500 V DC and system voltage up to 1,500 V
Cross-sections: 16 to 25 mm²
Nominal currents up to 200 A
Degree of protection up to IP65

Data connectors

Phoenix Contact offers data connectors for copper and FO cabling for fast and reliable data transmission in industry, computer centers or infrastructure applications. Connectors, patch cables, and accessories are available for all common fieldbuses and networks.

Transmission speeds of up to 40 Gbps
Solutions for IP20, IP65/IP67, and IP69K
Innovative hybrid cabling
Patch panels and marshalling panels for 19″ mounting

Heavy-duty connectors

Heavy-duty connectors protect your interfaces and ensure the reliable transmission of power, data, and signals even under the harshest conditions. They are resistant to dirt, water, vibrations, and high mechanical strain and are sealed up to IP69K degree of protection.

Conductive metal housings with EMC protection
Mounting- and connection-compatible sleeve and base housings
Fixed-position and modular contact inserts with a wide range of connection technologies
Conductive surfaces with EMC protection

Installation connectors and installation cables

Connect cables quickly and easily using installation connectors and cables. Depending on your application, choose between simple cable connections, convenient power distribution, or compact device connections. Robust housings and high degrees of protection enable reliable power transmission in the field and in humid environments.

Fixed and plug-in connections
Solutions for IP68/IP69K/IK07
For currents up to 40 A and voltages up to 690 V
For cables up to 5 x 6 mm2

Modular rectangular connectors

Modular rectangular connectors offer compact connections for use in devices, terminal boxes, and control cabinets. Various different housing versions, modular contact inserts, and contact carriers for crimp contacts enable flexible connection options for signals, data, and power.

Sleeve housings in accordance with IP65/IP67/IP68/IP69K degree of protection
Contact insert sets for 4 to 40 positions
Modular contact inserts for hybrid applications
Panel-mount bases and coupling housings

Photovoltaic connectors

Photovoltaic connectors from Phoenix Contact cover a wide range of applications: AC and DC connectors for assembly, device connections as well as connection technology for photovoltaic panels, building-integrated photovoltaics (BIPV), and micro inverters enable consistent connection solutions.

AC and DC connectors with IP66/IP68 degree of protection
AC and DC device connections with IP65/IP66/IP68 degree of protection
Panel feed-through and PCB terminal blocks for currents up to 309 A and voltages up to 600 V (UL)
Connection systems for BIPV and micro inverters

Customer-specific cable assemblies

Create custom cable assemblies for your applications. The wide range of designs, codings, and pin assignments enables customer-specific solutions for transmitting signals, data, and power.

Marking according to your specifications
Labeling and packaging with logo or bar code
New customer-specific product developments tailored to your requirements
