Marshalling panels for signal distribution

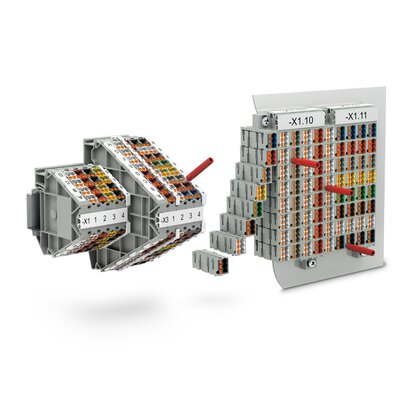

The marshalling panels provide maximum signal density and require up to 20% less space due to their compact design. The marshalling terminals can be installed easily by simply snapping them onto an NS 35 DIN rail. You can easily test the individual connection points by means of the freely accessible 2.3 mm test points on the marshalling panel. You can reduce your storage and logistics costs by using the uniform CLIP LINE complete accessories. The marshalling panels are available as pre-assembled versions in various, standardized colour combinations, e.g., in accordance with DIN VDE 0815, and as versions that can be freely assembled.

Marshalling patchboards for potential distribution

Marshalling patchboards for potential distribution Due to their compact design, the marshalling patchboards offer space savings of up to 20%. The modular structure can be configured to the precise number of positions and features color matrix elements. This ensures space-saving, clear, and error-free wiring. You can conveniently test the marshalling patchboards by means of the freely accessible 2.3 mm test points. The potential distributors are available for the direct, 19-inch rack, or DIN rail mounting. As with the marshalling panels, you can reduce your storage and logistics costs by using the uniform CLIP LINE complete accessories.

The marshalling patchboards are also available in pre-assembled and freely configurable versions.

Using marshalling patchboards

Alongside the use of bus systems in new plants and retrofits, such as in power stations and process plants, the point-to-point connection remains valid due to stringent safety and availability requirements. It has the advantage of fast fault localization using standard measuring devices. With high signal density, low space requirements, and optimum clarity, the marshalling patchboard will also remain indispensable in the future. The patented and modular PTMC marshalling patchboard concept provides you with an innovative system for your marshalling tasks..

Configure your marshalling panels and marshalling patchboards according to your requirements

The marshalling patchboards and marshalling panels can be easily configured and ordered with just a click of the mouse. Select the marshalling patchboard version to be configured and then specify the number and colour of the patchboard elements. For the marshalling panels, select the version to be configured and specify the colour of the connection chambers.
