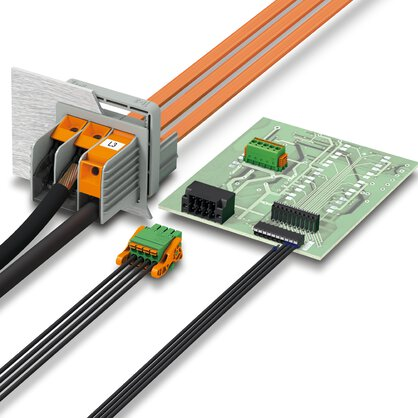

PCB terminal blocks and PCB connectors

Versatile connection technology, reliable connections: PCB terminal blocks and PCB connectors are fundamental components of all electronic devices. Our comprehensive portfolio includes the right connection technology for the transmission of signals, data, and power for almost any application. The product range includes PCB terminal blocks, PCB connectors, connectors, and high-current feed-through terminal blocks.

Brand: Phoenix

Description

Your Advantages:

Very high degree of flexibility with versatile connection technologies such as screw connection or Push-in connection
Can be used in numerous applications and in a wide range of industries, thanks to a range of pitches and number of positions
Very high degree of reliability, thanks to high material quality
Long service life with fully developed contact geometries and surfaces
Expert support and advice from experienced product specialists for design-in projects
Customer-specific versions for individual solutions

PCB connectors and electronics housings: Connection technology for the future

Phoenix Contact provides you with versatile connection technology solutions in the form of PCB connectors, board-to-board connectors, and electronics housings that are available in different forms, colors, and connection options. Benefit from our extensive development and manufacturing expertise for your individual connection solution.

PCB terminal blocks

PCB terminal blocks enable the easy and safe transmission of signals, data, and power directly to the PCB.

Conductor cross-sections from 0.14 to 95 mm2
Currents up to 232 A and voltages up to 1,000 V
Screw, spring, or insulation displacement connection
Pitch from 2.5 to 20 mm

PCB connectors

Our PCB connectors offer a universal, maintenance-friendly conductor connection for almost all device designs from a wide range of industries and markets.

Conductor cross-sections from 0.14 to 35 mm2
Currents up to 125 A and voltages up to 1,000 V
Screw, spring, lever, pierce, or crimp connection
Locking by means of latch mechanism systems or screw flanges

SPT modular series PCB terminal blocks

SPT modular series configurable PCB terminal blocks supply your electronics with up to 1,500 V in a single connection block.

Electric strength of 24 to 1,500 V
Simple configuration of color spaces, individual position colors, and different cross-sections
Seamless digital process chain for the rapid development of the configured item, smooth production, and reliable delivery
24/7 access to all configuration data, e.g., using the QR code on the product

High-current feed-through terminal blocks

With high-current feed-through terminal blocks, high currents and voltages can be transmitted safely and reliably through the housing panel.

Conductor cross-sections from 4 to 150 mm2
Currents up to 309 A and voltages up to 1,000 V
Screw, spring, T-LOX, or bolt connection
Panel thickness of 1 to 6 mm>24/7 access to all configuration data, e.g., using the QR code on the product
